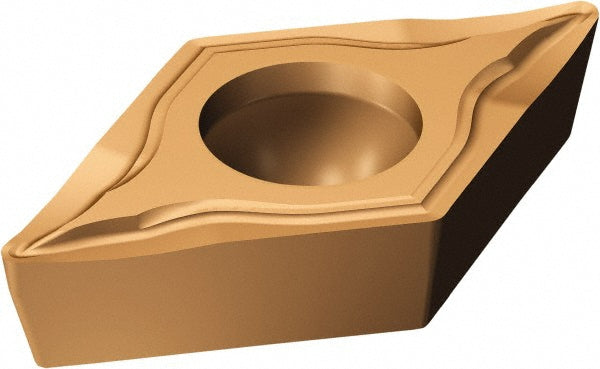

DCGT 07 02 01-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5730420

Sandvik Coromant

DCGT 07 02 01-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5730420

MFR# 5730420ISO/ANSI# DCGT 07 02 01-UM 1115Cat# DCGT 07 02 01-UM 1115Series CoroTurn 107

$32.74List $41.26 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5730420 is a DCGT 07 02 01-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Full radiusYes
Hole diameter0.0937
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3013
Insert materialCarbide
Insert shapeDiamond
Insert size code21.503
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT 07 02 01-UM 1115
Length range0.3000 - 0.4000
Manufacturers catalog numberDCGT 07 02 01-UM 1115
Manufacturer grade1115
Maximum depth of cut0.3013
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
