Sandvik Coromant

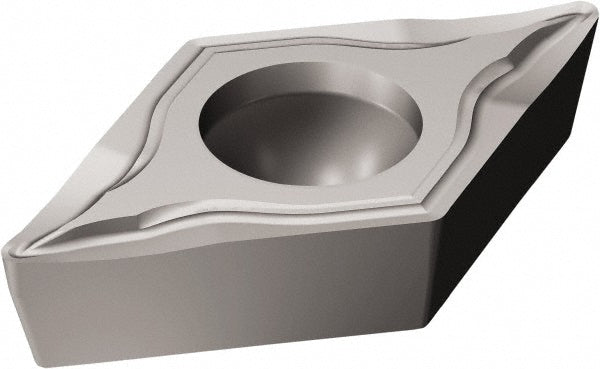

DCGT 07 02 02-UM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5730422
MFR# 5730422ISO/ANSI# DCGT 07 02 02-UM H13A
$19.46List $24.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730422 is a DCGT 07 02 02-UM H13A carbide indexable insert, grade H13A.
Specifications
Chip breakerT
Clearance codeC
Corner radius0.0079
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2973
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT 07 02 02-UM H13A
Length range0.0000 - 0.3000
Manufacturer gradeH13A
Relief angle7
Tolerance codeG
