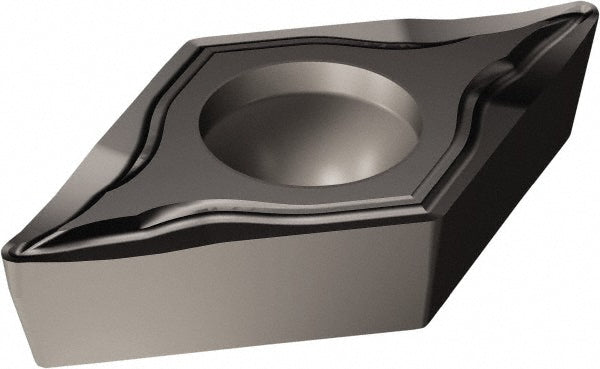

DCGT 07 02 04-UM 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5730438
MFR# 5730438ISO/ANSI# DCGT 07 02 04-UM 1105Series CoroTurn 107
$26.86List $34.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 5730438 is a DCGT 07 02 04-UM 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN2
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT 07 02 04-UM 1105
Length range0.3000 - 0.4000
Manufacturers catalog number5730438
Manufacturer grade1105
Maximum depth of cut0.2894
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeG
Wiper edgeNo
