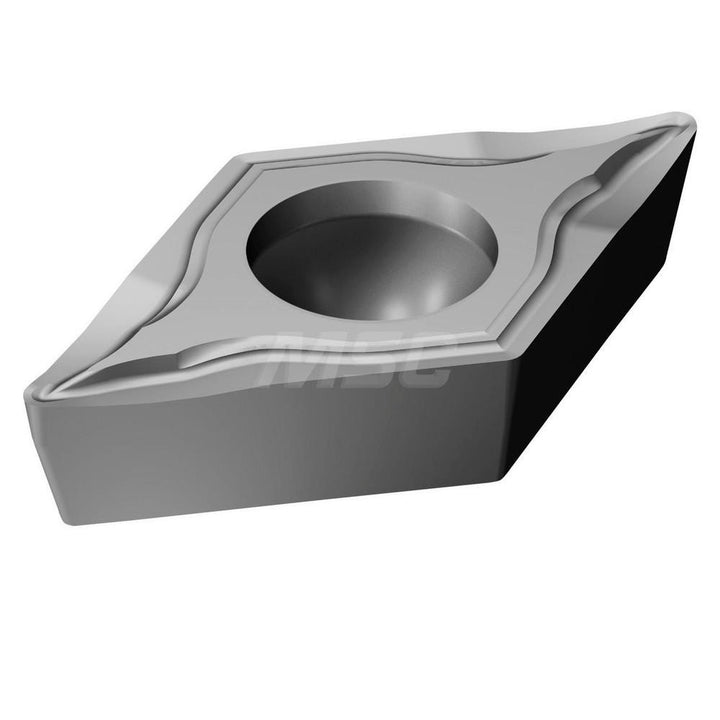

DCGT 11 T3 01-UM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5730444
MFR# 5730444ISO/ANSI# DCGT 11 T3 01-UM H13ACat# DCGT11T301UMH13ASeries CoroTurn 107
$26.07List $33.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730444 is a DCGT 11 T3 01-UM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating processUncoated
Corner radius0.0039
Full radiusYes
Hole diameter0.1563
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4539
Insert materialCarbide
Insert shapeDiamond
Insert size code32.503
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11 T3 01-UM H13A
Length range0.4000 - 0.5000
Manufacturers catalog numberDCGT11T301UMH13A
Manufacturer gradeH13A
Maximum depth of cut0.4539
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
