Sandvik Coromant

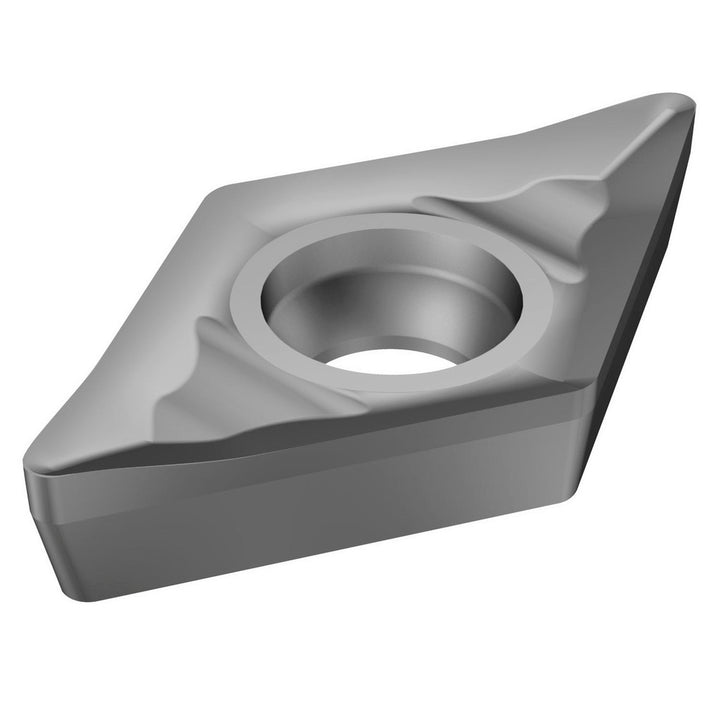

DCGX 11 T3 04-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5730469
MFR# 5730469ISO/ANSI# DCGX 11 T3 04-AL H10Series CoroTurn 107
$21.56List $27.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5730469 is a DCGX 11 T3 04-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGX
Insert thickness in5/32
Iso codeDCGX 11 T3 04-AL H10
Length range0.4000 - 0.5000
Manufacturer gradeH10
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
