Sandvik Coromant
DCET070200UM1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730486
MFR# 5730486ISO/ANSI# DCET070200UM1125Series CoroTurn 107
$29.59List $37.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description

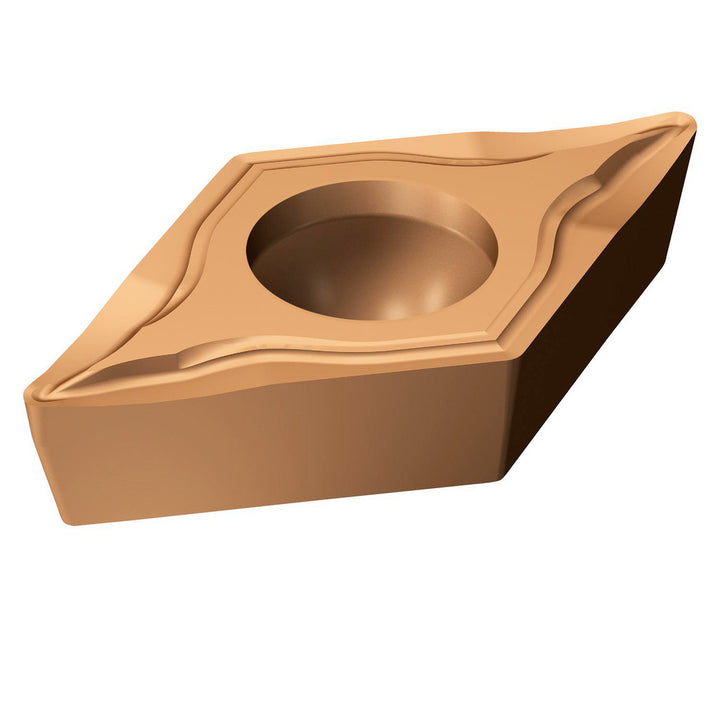

The Sandvik Coromant 5730486 is a DCET070200UM1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius (mm)0.00
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleDCET
Insert thickness in3/32
Iso codeDCET070200UM1125
Length range0.3000 - 0.4000
Manufacturers catalog number5730486
Manufacturer grade1125
Maximum depth of cut0.3032
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeE
Wiper edgeNo
