Sandvik Coromant

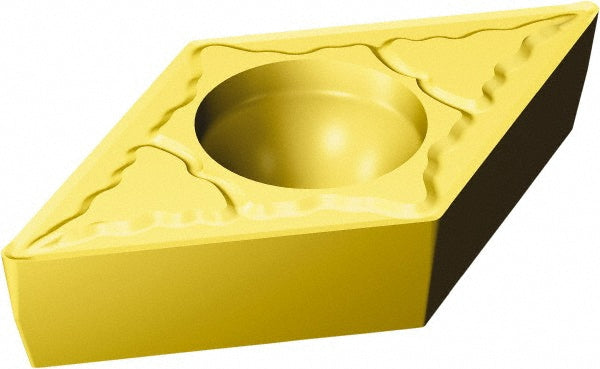

DCMT 07 02 04-PM 1525 Cermet Insert, Grade 1525, TiCN - Sandvik Coromant 5730568
MFR# 5730568ISO/ANSI# DCMT 07 02 04-PM 1525Series CoroTurn 107
$13.10List $16.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1525
MaterialCermet
CoatingTiCN
Description
The Sandvik Coromant 5730568 is a DCMT 07 02 04-PM 1525 cermet indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCermet
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 04-PM 1525
Length range0.3000 - 0.4000
Manufacturers catalog number5730568
Manufacturer grade1525
Maximum depth of cut0.2894
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
