Sandvik Coromant

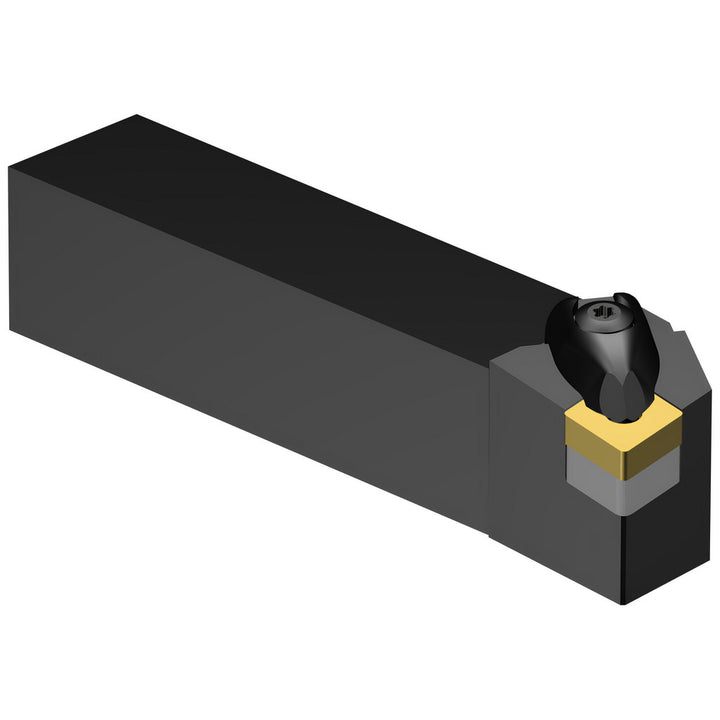

Indexable Turning & Profiling - Sandvik Coromant 5730569
MFR# 5730569Series T-Max® P
$171.81List $182.52
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5730569 indexable turning & profiling. Series T-Max® P.
Specifications
Back of bar to cutting edge in5
Cutting tool applicationFacing
Hand of holderLeft Hand
Head length1.2598
Insert compatibilityCNMG 432
Insert holding methodWedge
Insert inscribed circle in1/2
Insert width in1/2
Multi use toolYes
Overall length in5
RakeNegative
Rake angle-6
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleDCLNL
