Sandvik Coromant

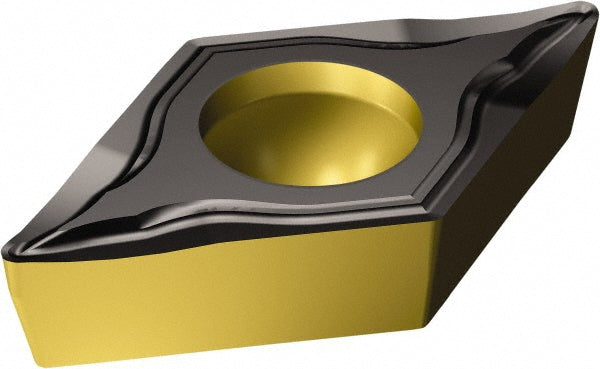

DCGT 11 T3 04-UM 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5730609
MFR# 5730609ISO/ANSI# DCGT 11 T3 04-UM 1515Cat# DCGT11T304UM1515Series CoroTurn 107
$35.83List $45.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730609 is a DCGT 11 T3 04-UM 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Corner radius in1/64
Full radiusYes
Hole diameter0.1563
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11 T3 04-UM 1515
Length range0.4000 - 0.5000
Manufacturers catalog numberDCGT11T304UM1515
Manufacturer grade1515
Maximum depth of cut0.4420
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeG
Wiper edgeNo
