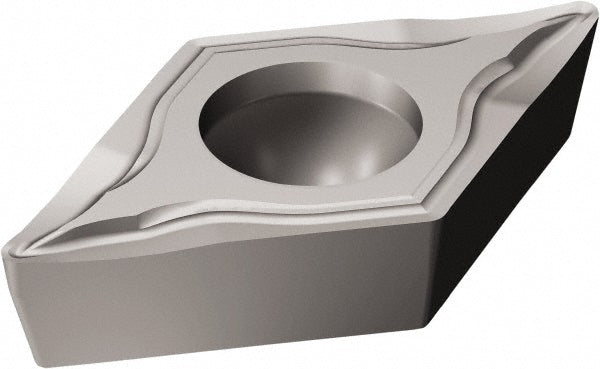

DCGT 11 T3 04-UM 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5730614
MFR# 5730614ISO/ANSI# DCGT 11 T3 04-UM 5015Series CoroTurn 107
$32.59List $41.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5730614 is a DCGT 11 T3 04-UM 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11 T3 04-UM 5015
Length range0.4000 - 0.5000
Manufacturer grade5015
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeG
Wiper edgeNo
