Sandvik Coromant

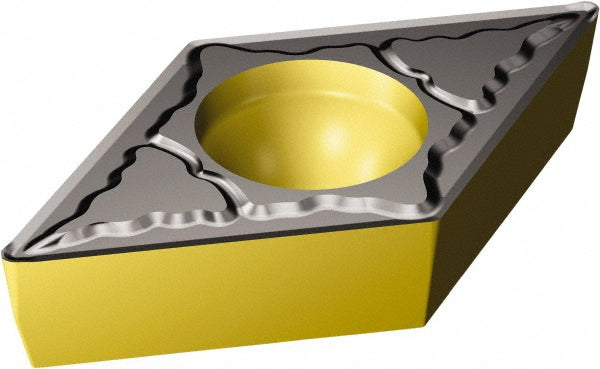

DCMT 11 T3 04-PM 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5730618
MFR# 5730618ISO/ANSI# DCMT 11 T3 04-PM 1515Series CoroTurn 107
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730618 is a DCMT 11 T3 04-PM 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4579
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 04-PM 1515
Length range0.4000 - 0.5000
Manufacturers catalog number5730618
Manufacturer grade1515
Maximum depth of cut0.4421
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
