Sandvik Coromant

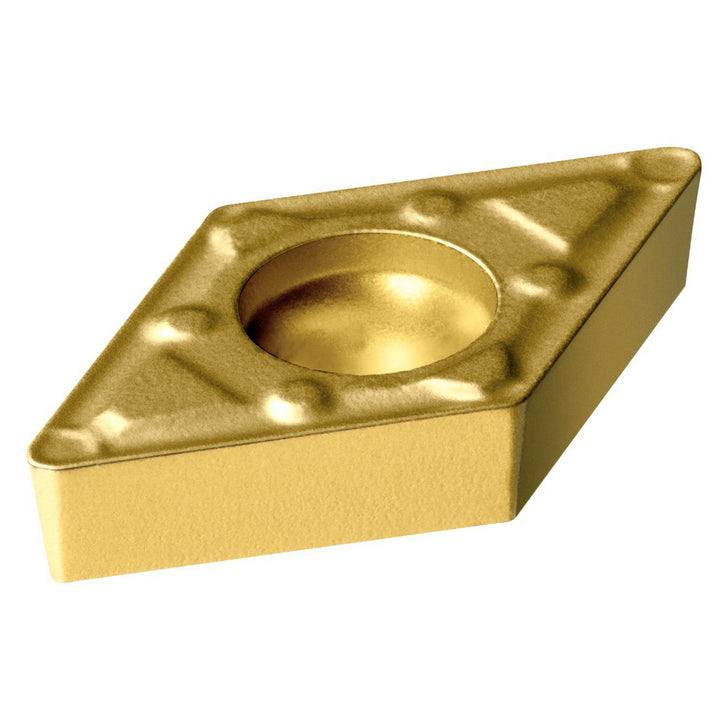

DCMX 11 T3 04-WF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5730641
MFR# 5730641ISO/ANSI# DCMX 11 T3 04-WF 2015Series CoroTurn 107
$19.73List $25.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730641 is a DCMX 11 T3 04-WF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMX
Insert thickness in5/32
Iso codeDCMX 11 T3 04-WF 2015
Length range0.4000 - 0.5000
Manufacturer grade2015
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeYes
