Sandvik Coromant

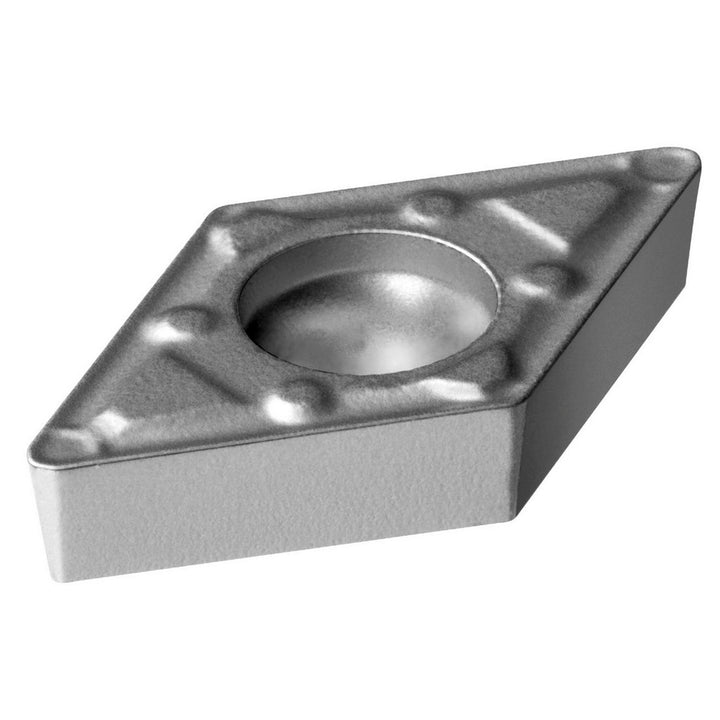

DCMX 11 T3 04-WF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5730648
MFR# 5730648ISO/ANSI# DCMX 11 T3 04-WF 5015Series CoroTurn 107
$22.54List $28.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5730648 is a DCMX 11 T3 04-WF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMX
Insert thickness in5/32
Iso codeDCMX 11 T3 04-WF 5015
Length range0.4000 - 0.5000
Manufacturer grade5015
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
