Sandvik Coromant

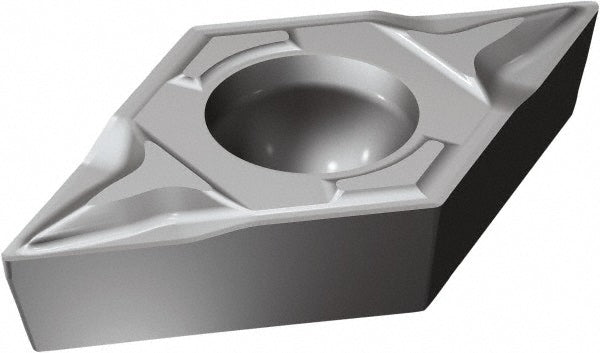

DCMT 11 T3 02-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5730697
MFR# 5730697ISO/ANSI# DCMT 11 T3 02-PF 5015Series CoroTurn 107
$22.54List $28.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5730697 is a DCMT 11 T3 02-PF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Coating processUncoated
Corner radius0.0079
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4499
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 02-PF 5015
Length range0.4000 - 0.5000
Manufacturer grade5015
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
