Sandvik Coromant

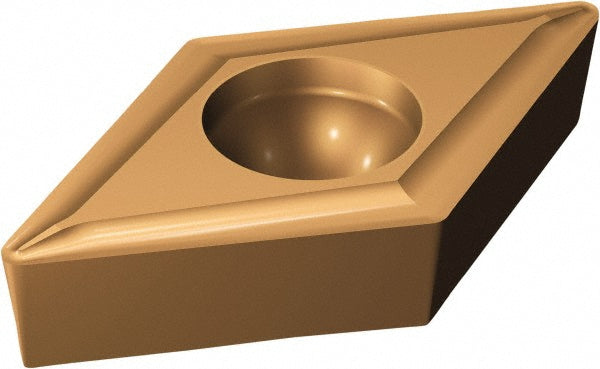

DCMT 07 02 02-UF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730712
MFR# 5730712ISO/ANSI# DCMT 07 02 02-UF 1125Cat# DCMT 07 02 02-UF 1125Series CoroTurn 107
$16.42List $21.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730712 is a DCMT 07 02 02-UF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerUF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Full radiusYes
Hole diameter0.0937
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2973
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 02-UF 1125
Length range0.0000 - 0.3000
Manufacturers catalog numberDCMT 07 02 02-UF 1125
Manufacturer grade1125
Maximum depth of cut0.2973
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
