Sandvik Coromant

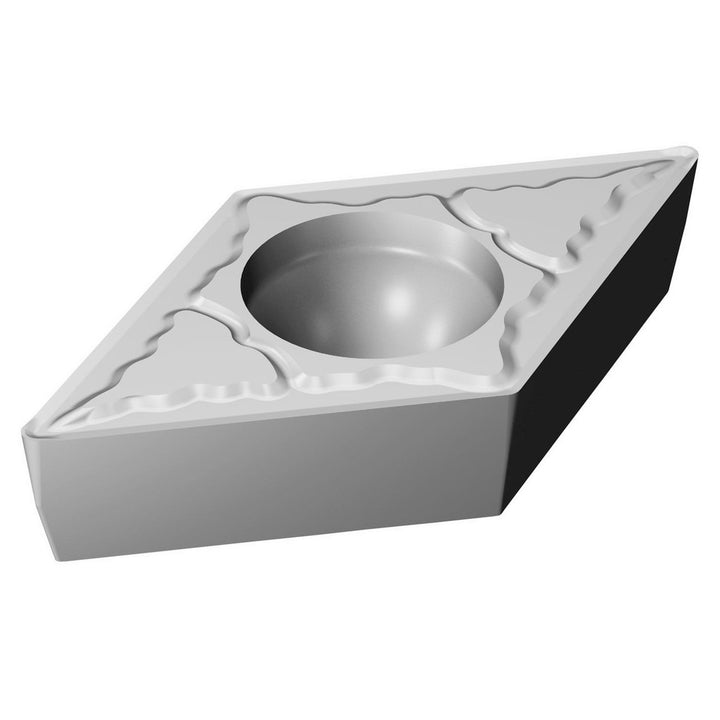

DCMT070204KMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5730726
MFR# 5730726ISO/ANSI# DCMT070204KMH13ASeries CoroTurn 107
$9.67List $12.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730726 is a DCMT070204KMH13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeC
Corner radius in1/64
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204KMH13A
Length range0.3000 - 0.4000
Manufacturers catalog number5730726
Manufacturer gradeH13A
Maximum depth of cut0.2894
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
