Sandvik Coromant

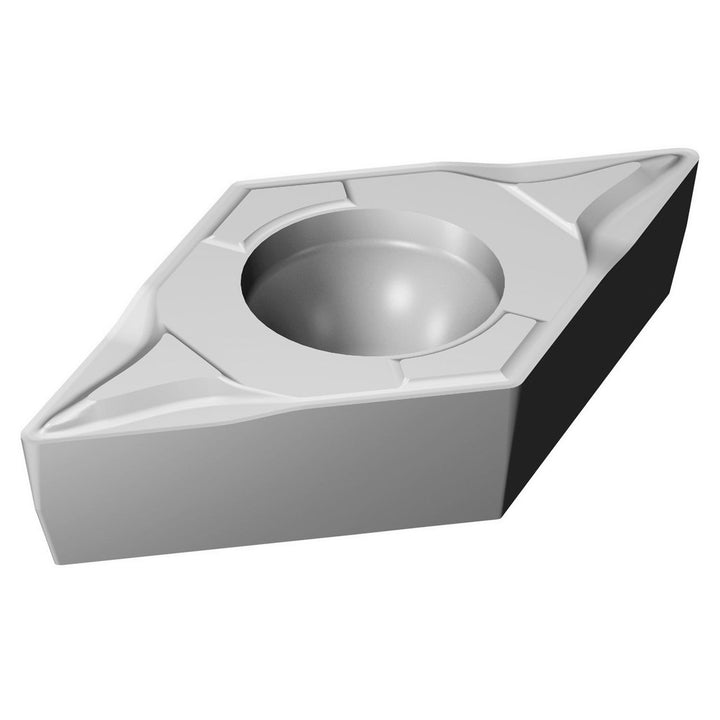

DCMT 11 T3 02-KF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5730830
MFR# 5730830ISO/ANSI# DCMT 11 T3 02-KF H13ACat# DCMT 11 T3 02-KF H13ASeries CoroTurn 107
$15.01List $19.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5730830 is a DCMT 11 T3 02-KF H13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKF
Clearance codeC
Coating processUncoated
Corner radius0.0079
Full radiusYes
Hole diameter0.1563
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4499
Insert materialCarbide
Insert shapeDiamond
Insert size code32.5
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 02-KF H13A
Length range0.4000 - 0.5000
Manufacturers catalog numberDCMT 11 T3 02-KF H13A
Manufacturer gradeH13A
Maximum depth of cut0.4499
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
