Sandvik Coromant

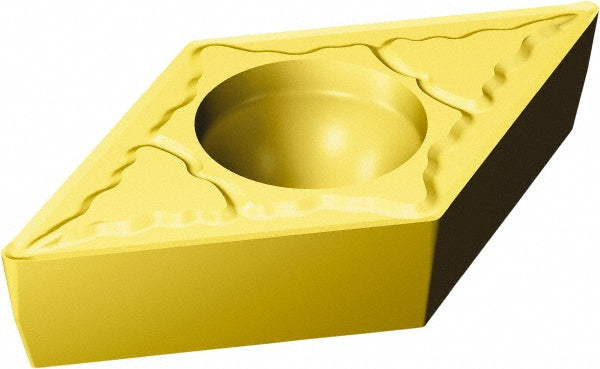

DCMT 07 02 08-PM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5730832
MFR# 5730832ISO/ANSI# DCMT 07 02 08-PM 1525Cat# DCMT 07 02 08-PM 1525Series CoroTurn 107
$13.10List $16.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730832 is a DCMT 07 02 08-PM 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Full radiusYes
Hole diameter0.0937
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2737
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 08-PM 1525
Length range0.0000 - 0.3000
Manufacturers catalog numberDCMT 07 02 08-PM 1525
Manufacturer grade1525
Maximum depth of cut0.2737
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
