Sandvik Coromant

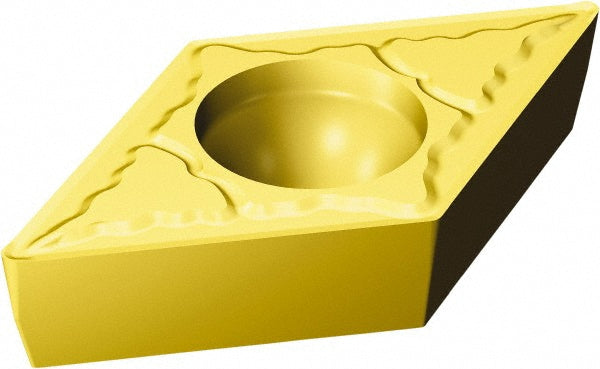

DCMT 07 02 04-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5730845
MFR# 5730845ISO/ANSI# DCMT 07 02 04-MM 2035Series CoroTurn 107
$12.48List $16.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730845 is a DCMT 07 02 04-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT 07 02 04-MM 2035
Length range0.3000 - 0.4000
Manufacturers catalog number5730845
Manufacturer grade2035
Maximum depth of cut0.2894
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
