Sandvik Coromant

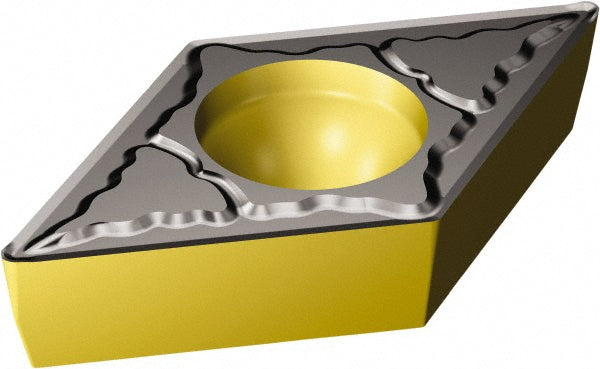

DCMT 11 T3 08-PM 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5730897
MFR# 5730897ISO/ANSI# DCMT 11 T3 08-PM 1515Cat# DCMT 11 T3 08-PM 1515Series CoroTurn 107
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5730897 is a DCMT 11 T3 08-PM 1515 carbide indexable insert, grade 1515, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1563
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeParallelogram
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 08-PM 1515
Length range0.4000 - 0.5000
Manufacturers catalog numberDCMT 11 T3 08-PM 1515
Manufacturer grade1515
Maximum depth of cut0.4263
Multi use applicationTurning
Multi use toolYes
Relief angle7
Tolerance codeM
