Sandvik Coromant

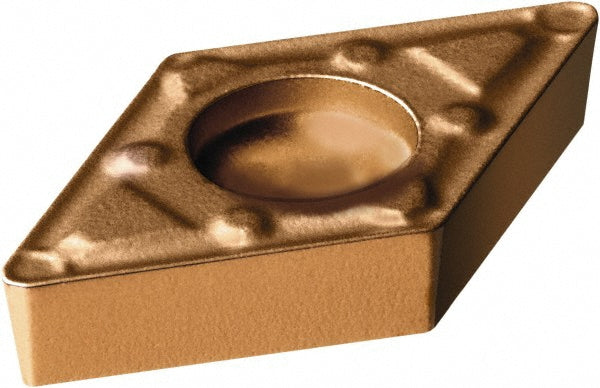

DCMX 07 02 08-WF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730928
MFR# 5730928ISO/ANSI# DCMX 07 02 08-WF 1125Cat# DCMX070208WF1125Series CoroTurn 107
$16.54List $21.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeParallelogram
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730928 is a DCMX 07 02 08-WF 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerX
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Full radiusYes
Hole diameter0.0937
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2737
Insert materialCarbide
Insert shapeParallelogram
Insert size code21.52
Insert styleDCMX
Insert thickness in3/32
Iso codeDCMX 07 02 08-WF 1125
Length range0.0000 - 0.3000
Manufacturers catalog numberDCMX070208WF1125
Manufacturer grade1125
Maximum depth of cut0.2737
Multi use applicationTurning
Multi use toolYes
Relief angle7
Tolerance codeM
