Sandvik Coromant

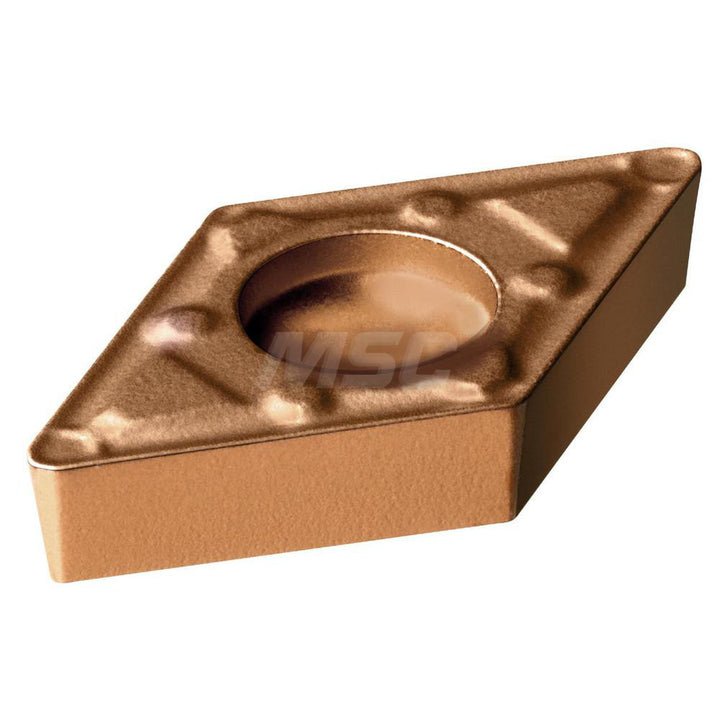

DCMX070202WF1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5730934
MFR# 5730934ISO/ANSI# DCMX070202WF1125Series CoroTurn 107
$17.64List $22.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730934 is a DCMX070202WF1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleDCMX
Insert thickness in3/32
Iso codeDCMX070202WF1125
Length range0.3000 - 0.4000
Manufacturers catalog number5730934
Manufacturer grade1125
Maximum depth of cut0.2972
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
