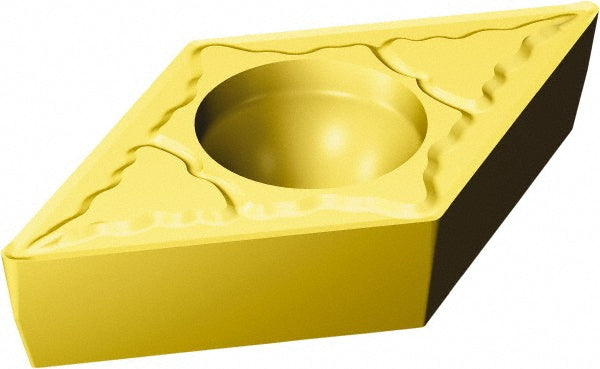

DCMT 11 T3 04-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5730943

MFR# 5730943ISO/ANSI# DCMT 11 T3 04-MM 2035Series CoroTurn 107

$20.39List $25.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5730943 is a DCMT 11 T3 04-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT 11 T3 04-MM 2035
Length range0.4000 - 0.5000
Manufacturer grade2035
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
