DNMX 15 04 08-WF 1525 Cermet Insert, Grade 1525, TiCN - Sandvik Coromant 5731351

Sandvik Coromant

DNMX 15 04 08-WF 1525 Cermet Insert, Grade 1525, TiCN - Sandvik Coromant 5731351

MFR# 5731351ISO/ANSI# DNMX 15 04 08-WF 1525Cat# DNMX 15 04 08-WF 1525Series T-Max P

$31.41List $39.58 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1525
MaterialCermet
CoatingTiCN

Description

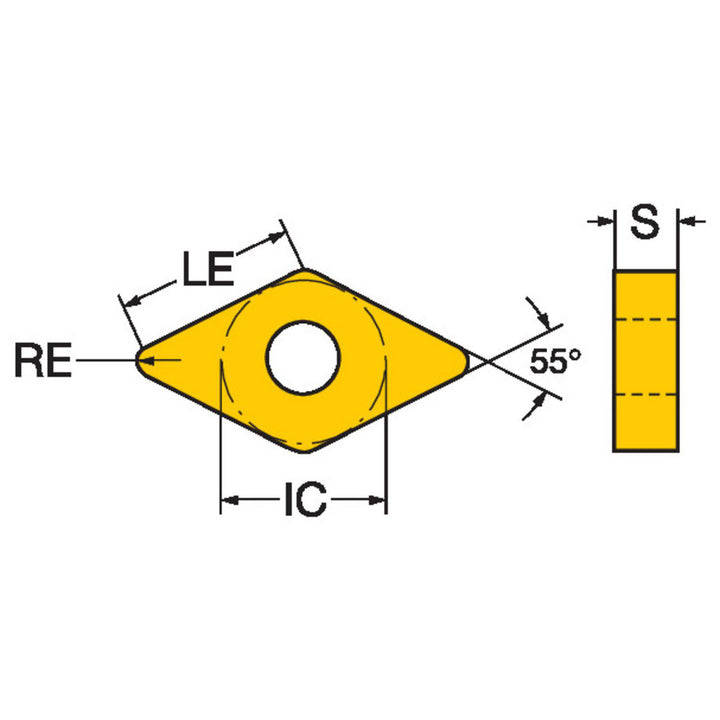

The Sandvik Coromant 5731351 is a DNMX 15 04 08-WF 1525 cermet indexable insert, grade 1525, TiCN coated. Suited for steel.

Specifications

Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCermet
Insert shapeDiamond
Insert size code432
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 15 04 08-WF 1525
Length range0.5000 - 0.6000
Manufacturers catalog numberDNMX 15 04 08-WF 1525
Manufacturer grade1525
Maximum depth of cut0.5789
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
