Sandvik Coromant

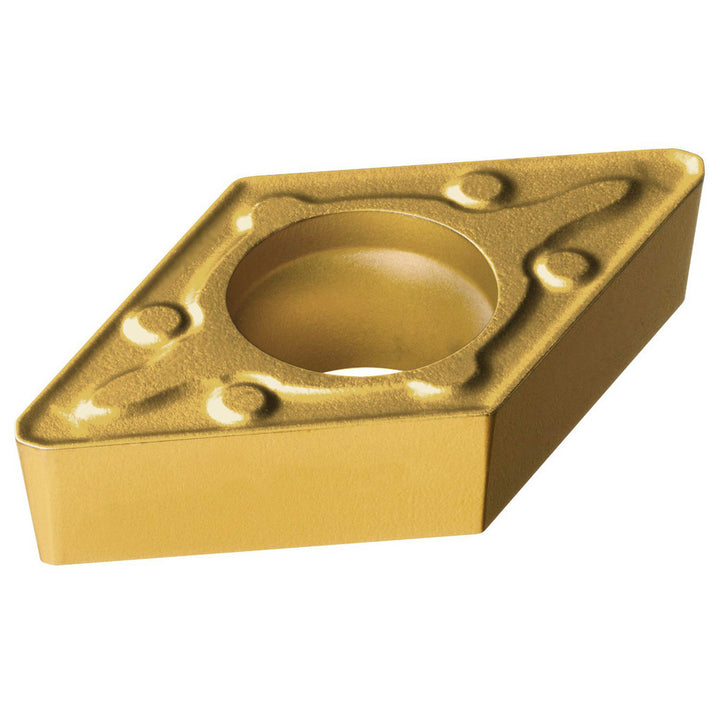

DCMX11T304WM2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5731372
MFR# 5731372ISO/ANSI# DCMX11T304WM2015Series CoroTurn 107
$21.30List $27.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5731372 is a DCMX11T304WM2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerWM
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4579
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMX
Insert thickness in5/32
Iso codeDCMX11T304WM2015
Length range0.4000 - 0.5000
Manufacturers catalog number5731372
Manufacturer grade2015
Maximum depth of cut0.4421
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeYes
