Sandvik Coromant

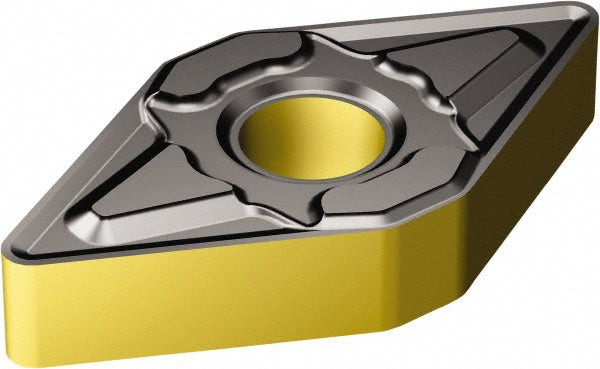

DNMG 11 04 12-KM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5731422
MFR# 5731422ISO/ANSI# DNMG 11 04 12-KM 3210Cat# DNMG 11 04 12-KM 3210Series T-Max P
$16.84List $21.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5731422 is a DNMG 11 04 12-KM 3210 carbide indexable insert, grade 3210, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4106
Insert materialCarbide
Insert shapeParallelogram
Insert size code333
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 12-KM 3210
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMG 11 04 12-KM 3210
Manufacturer grade3210
Maximum depth of cut0.4106
Multi use applicationTurning
Multi use toolYes
Relief angle0
Tolerance codeM
