Sandvik Coromant

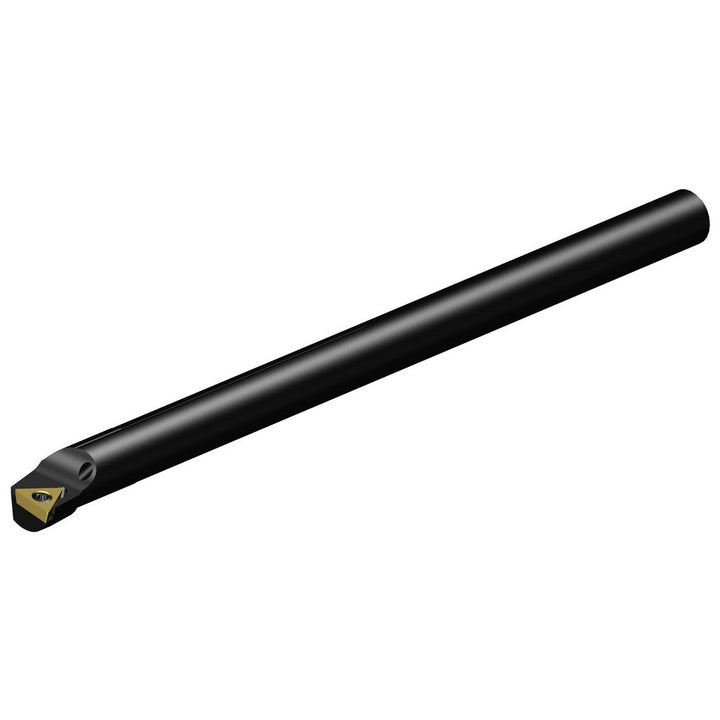

Indexable Boring - Sandvik Coromant 5731589
MFR# 5731589Cat# E05K-STFCR 1.2-RSeries CoroTurn 107
$394.44List $419.04
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5731589 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge5.0000
Center to cutting edge0.2189
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 1.21.20
Insert holding methodScrew Clamping
Insert inscribed circle0.1563
Insert thickness0.0750
Lead angle0.00
Manufacturers catalog numberE05K-STFCR 1.2-R
Minimum bore diameter0.4134
Minimum bore diameter using diamond insert cartridge0.4134
Minimum bore diameter using triangle insert cartridge0.4134
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in5/16
Number of inserts used on toolholder1
Overall length in5
RakeNeutral
Rake angle0.00
Shank diameter in5/16
Toolholder styleE-STFC
Tool materialSolid Carbide
