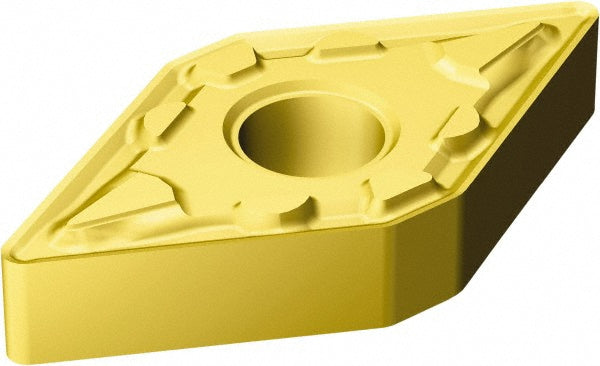

DNMG 15 06 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5731715

Sandvik Coromant

DNMG 15 06 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5731715

MFR# 5731715ISO/ANSI# DNMG 15 06 08-MM 2025Series T-Max P

$29.00List $36.55 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5731715 is a DNMG 15 06 08-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeDiamond
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Iso codeDNMG 15 06 08-MM 2025
Length range0.5000 - 0.6000
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
