Sandvik Coromant

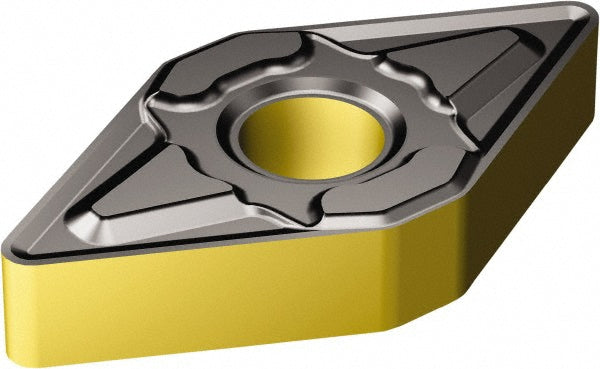

DNMG 11 04 08-KM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5731853
MFR# 5731853ISO/ANSI# DNMG 11 04 08-KM 3210Series T-Max P
$18.83List $24.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5731853 is a DNMG 11 04 08-KM 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 08-KM 3210
Length range0.4000 - 0.5000
Manufacturer grade3210
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
