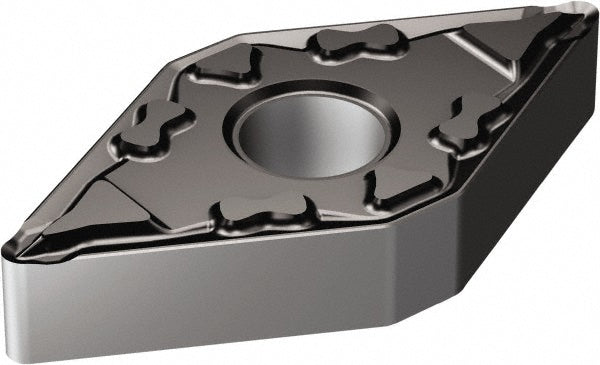

DNMG 11 04 08-MF 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5731868
MFR# 5731868ISO/ANSI# DNMG 11 04 08-MF 1105Cat# DNMG 11 04 08-MF 1105Series T-Max P
$20.51List $26.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5731868 is a DNMG 11 04 08-MF 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 08-MF 1105
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMG 11 04 08-MF 1105
Manufacturer grade1105
Maximum depth of cut0.4263
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
