Sandvik Coromant

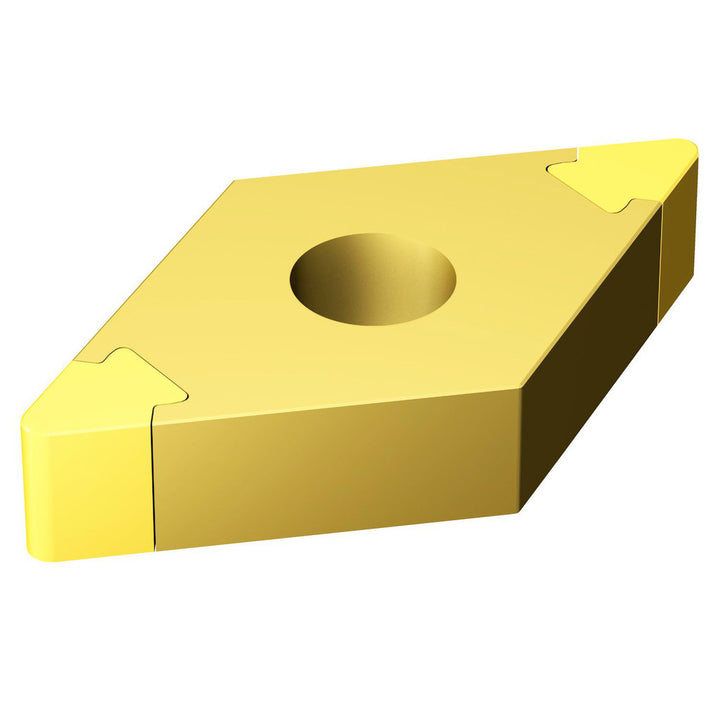

DNGA150404S01030A 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5731990
MFR# 5731990ISO/ANSI# DNGA150404S01030A 7015Series T-Max P
$201.39List $253.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade7015
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5731990 is a DNGA150404S01030A 7015 carbide indexable insert, grade 7015, TiN coated. Suited for hard material.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1575
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150404S01030A 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Number of cutting edges4
Primary workpiece materialHard Material
Relief angle0
Tolerance codeG
Wiper edgeNo
