Sandvik Coromant

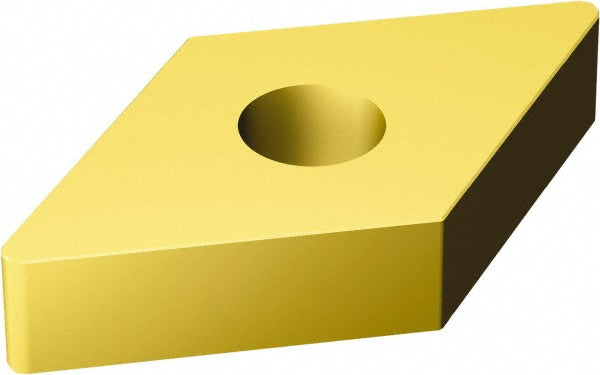

DNGA150404S01525 6050 Ceramic Insert, Grade 6050, TiN - Sandvik Coromant 5731993
MFR# 5731993ISO/ANSI# DNGA150404S01525 6050Series T-Max P
$24.39List $31.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade6050
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5731993 is a DNGA150404S01525 6050 ceramic indexable insert, grade 6050, TiN coated. Suited for hard material.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5946
Insert materialCeramic
Insert shapeDiamond
Insert size code431
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150404S01525 6050
Length range0.5000 - 0.6000
Manufacturer grade6050
Number of cutting edges4
Primary workpiece materialHard Material
Relief angle0
Tolerance codeG
Wiper edgeNo
