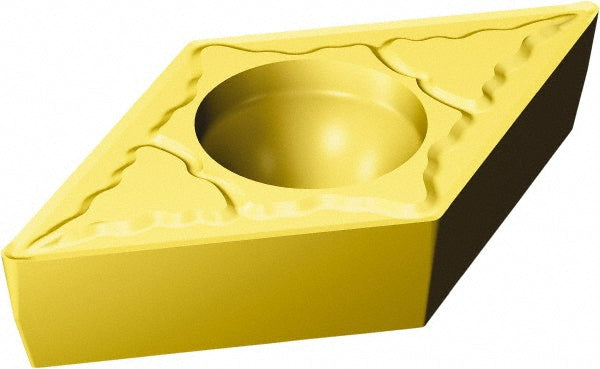

DPMT 11 T3 04-PM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5732200
MFR# 5732200ISO/ANSI# DPMT 11 T3 04-PM 1525Series CoroTurn 111
$18.49List $23.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5732200 is a DPMT 11 T3 04-PM 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPM
Clearance codeP
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDPMT
Insert thickness in5/32
Iso codeDPMT 11 T3 04-PM 1525
Length range0.4000 - 0.5000
Manufacturer grade1525
Number of cutting edges2
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
