Sandvik Coromant

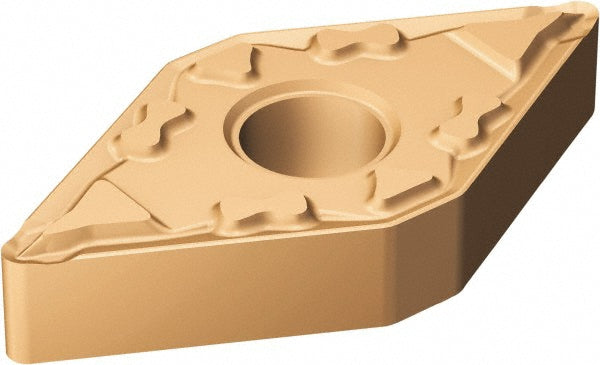

DNMG 11 04 04-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5732260
MFR# 5732260ISO/ANSI# DNMG 11 04 04-MF 1115Series T-Max P
$24.98List $31.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5732260 is a DNMG 11 04 04-MF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4579
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 04-MF 1115
Length range0.4000 - 0.5000
Manufacturers catalog number5732260
Manufacturer grade1115
Maximum depth of cut0.4421
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
