Sandvik Coromant

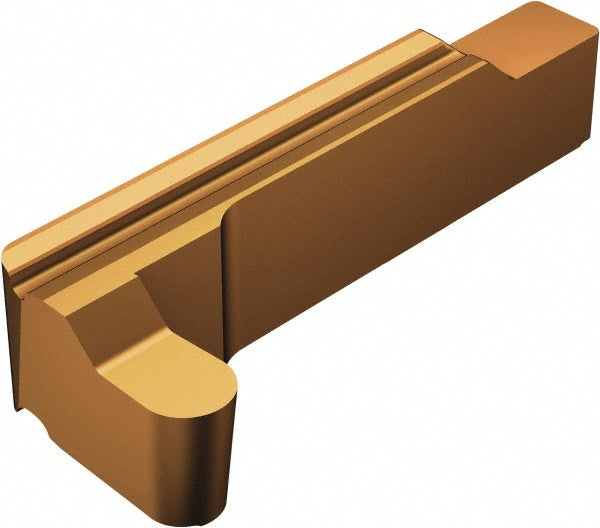

LG123L1-0300-0015-RS1115 Solid Carbide Insert, TiAlN - Sandvik Coromant 5732324
MFR# 5732324ISO/ANSI# LG123L1-0300-0015-RS1115Cat# LG123L1-0300-0015-RS1115Series CoroCut 1-2
$96.01List $121.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5732324 is a LG123L1-0300-0015-RS1115 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRS
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutting height0.2382
Cutting width0.1181
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat sizeL
Insert sizeX1
Insert styleLG123..
Insert thickness0.2382
Iso codeLG123L1-0300-0015-RS1115
Manufacturers catalog numberLG123L1-0300-0015-RS1115
Maximum depth of cut0.3540
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0591
Multi use toolYes
Overall length1.2170
Overall width0.1180
RakePositive
