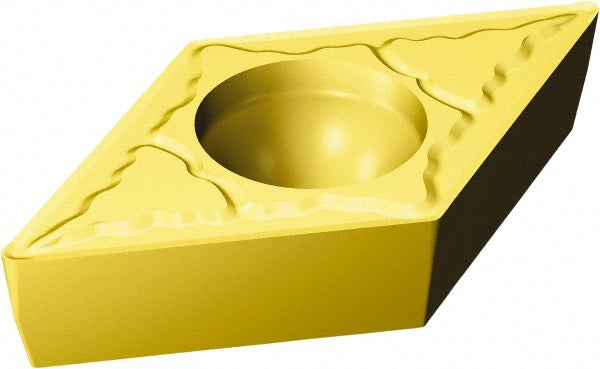

DPMT 07 02 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5732446

Sandvik Coromant

DPMT 07 02 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5732446

MFR# 5732446ISO/ANSI# DPMT070208Series CoroTurn 111

$14.32List $18.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
Grade2025
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5732446 is a DPMT 07 02 08-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Ansi insert codeDPMT21.52
Ansi size code21.52
Chip breakerMM
Chip breaker operationRoughing; Medium Machining
Clearance codeP
Coating finishTiCN
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to High Toughness
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.52
Insert styleDPMT
Insert thickness in3/32
Iso codeDPMT 07 02 08-MM 2025
Iso insert codeDPMT070208
Iso size code070208
Length range0.3000 - 0.4000
Manufacturers catalog number5732446
Manufacturer grade2025
Maximum depth of cut0.2736
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle11
Side clearancePositive
Tolerance codeM
Wiper edgeNo
