Sandvik Coromant

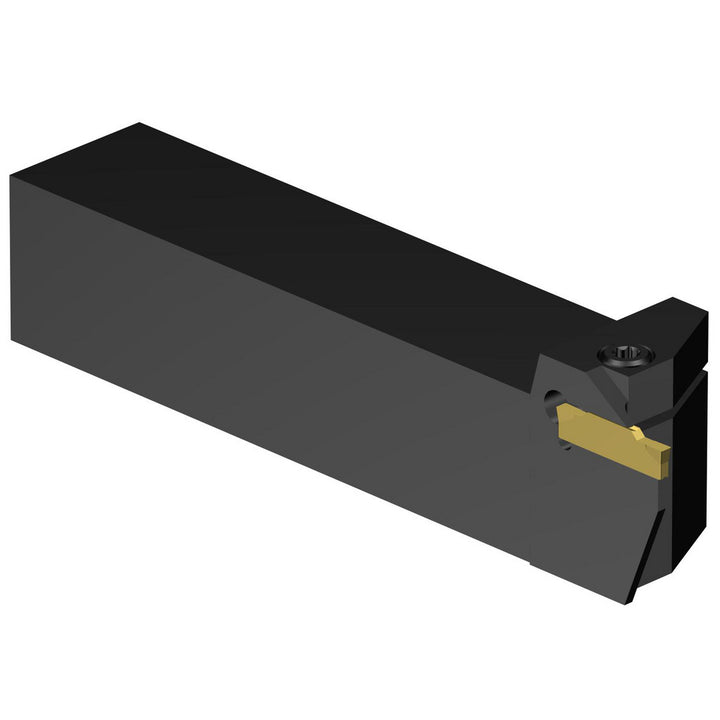

Indexable Grooving - Sandvik Coromant 5732643
MFR# 5732643Cat# LF123E032-16BSeries CoroCut 1-2
$254.15List $270.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5732643 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge5.0000
Compatible insert size codeN123E2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderLeft Hand
Head height1.0000
Head length1.0000
Insert compatibilityN123E2-0200-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberLF123E032-16B
Maximum depth of cut0.3200
Maximum groove width (mm)2.39
Maximum overhang in1.0040
Minimum groove width0.0728
Overall length (mm)127.00
Shank height in1
Shank length3.9960
Shank width diameter in1
Toolholder styleLF123..B
