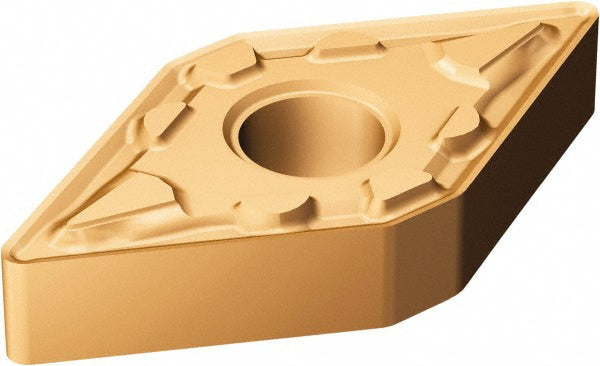

DNMG 15 04 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5732692

Sandvik Coromant

DNMG 15 04 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5732692

MFR# 5732692ISO/ANSI# DNMG150408Series T-Max P

$22.77List $29.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5732692 is a DNMG 15 04 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerMM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-MM 1125
Iso insert codeDNMG150408
Iso size code150408
Length range0.5000 - 0.6000
Manufacturer grade1125
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
