Sandvik Coromant
KNUX160405R112025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5732926
MFR# 5732926ISO/ANSI# KNUX160405R112025Series T-Max
$33.09List $41.69
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade2025
MaterialCarbide
CoatingTiCN
Description

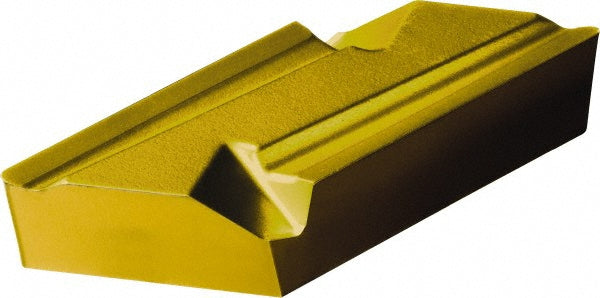

The Sandvik Coromant 5732926 is a KNUX160405R112025 carbide indexable insert, grade 2025, TiCN coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius0.0197
Included angle55
Insert handRight Hand
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeParallelogram
Insert size code160405
Insert styleKNUX
Insert thickness in3/16
Iso codeKNUX160405R112025
Length range0.6000 - 0.6500
Manufacturers catalog number5732926
Manufacturer grade2025
Maximum depth of cut0.6299
Relief angle0
Tolerance codeU
