Sandvik Coromant

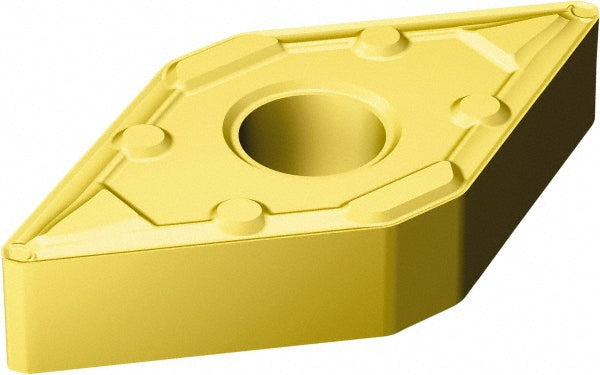

DNMX 11 04 08-WF 3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5733136
MFR# 5733136ISO/ANSI# DNMX 11 04 08-WF 3005Cat# DNMX 11 04 08-WF 3005Series T-Max P
$21.56List $27.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5733136 is a DNMX 11 04 08-WF 3005 carbide indexable insert, grade 3005, TiCN coated.
Specifications
Chip breakerX
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4263
Insert materialCarbide
Insert shapeParallelogram
Insert size code332
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 11 04 08-WF 3005
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMX 11 04 08-WF 3005
Manufacturer grade3005
Maximum depth of cut0.4263
Multi use applicationTurning
Multi use toolYes
Relief angle0
Tolerance codeM
