Sandvik Coromant
DNMG 15 04 12-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5733569
MFR# 5733569ISO/ANSI# DNMG 15 04 12-MM 2025Series T-Max P
$21.33List $26.89
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description

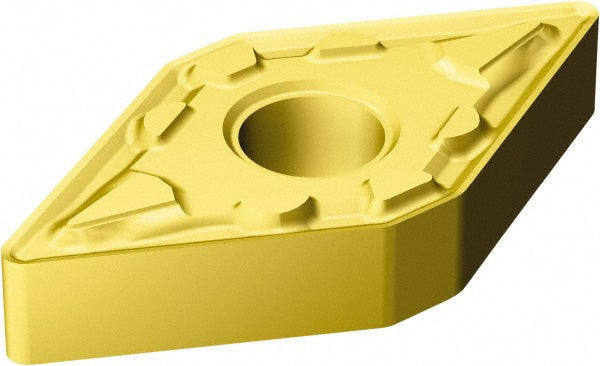

The Sandvik Coromant 5733569 is a DNMG 15 04 12-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5632
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 12-MM 2025
Length range0.5000 - 0.6000
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
