Sandvik Coromant

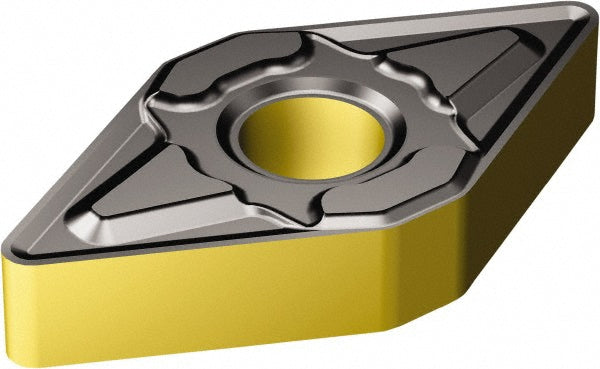

DNMG 15 04 12-KM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5733570
MFR# 5733570ISO/ANSI# DNMG 15 04 12-KM 3210Cat# DNMG 15 04 12-KM 3210Series T-Max P
$24.39List $31.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5733570 is a DNMG 15 04 12-KM 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeN
Coating finishTiCN
Corner radius in3/64
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5632
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 12-KM 3210
Length range0.5000 - 0.6000
Manufacturers catalog numberDNMG 15 04 12-KM 3210
Manufacturer grade3210
Maximum depth of cut0.5632
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
