Sandvik Coromant

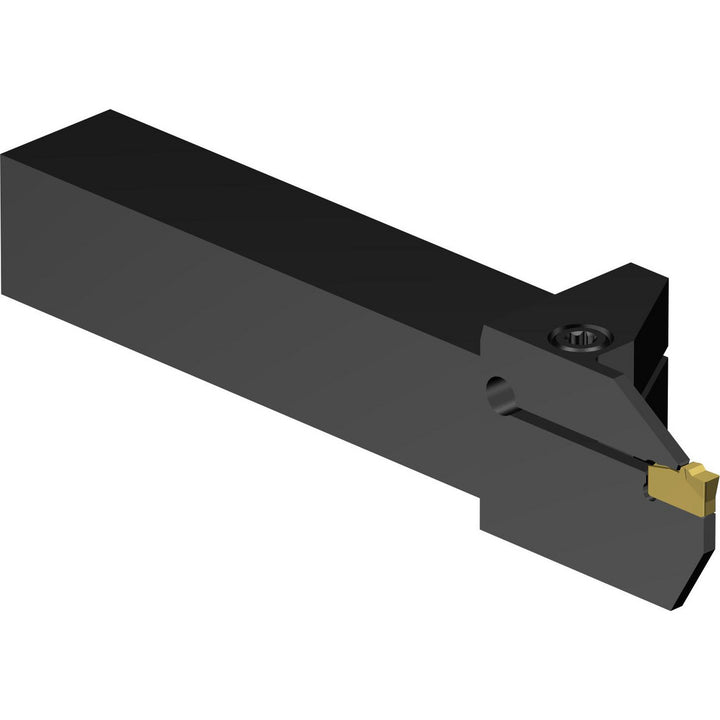

Indexable Grooving - Sandvik Coromant 5733593
MFR# 5733593Cat# LF151.23-12-25Series T-Max Q-Cut
$238.90List $253.80
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5733593 indexable grooving. Series T-Max Q-Cut.
Specifications
Back of bar to cutting edge5.0000
Coolant throughNo
Hand of holderLeft Hand
Head height0.7500
Head length0.7500
Insert compatibilityN151.2-250-5E
Insert holding methodClamp
Insert seat size25.0
Internal or externalExternal
Manufacturers catalog numberLF151.23-12-25
Maximum depth of cut0.7900
Maximum groove width0.1250
Minimum groove width0.0940
Overall length (mm)127.00
Shank height in3/4
Shank length3.4250
Shank width diameter in3/4
Toolholder styleLF151.23
