Sandvik Coromant

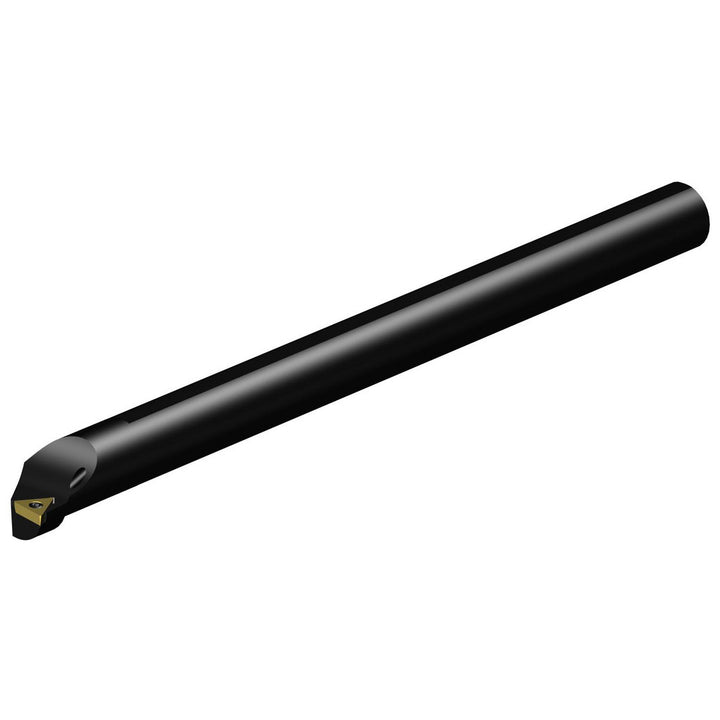

Indexable Boring - Sandvik Coromant 5734147
MFR# 5734147Cat# E12S-STFCR 2-B1Series CoroTurn 107
$1,090.80List $1,158.84
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5734147 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge10.0000
Center to cutting edge in1/2
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 221
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness in1/8
Lead angle0.00
Manufacturers catalog numberE12S-STFCR 2-B1
Minimum bore diameter0.9291
Minimum bore diameter using diamond insert cartridge0.9291
Minimum bore diameter using triangle insert cartridge0.9291
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in3/4
Number of inserts used on toolholder1
Overall length in10
RakeNeutral
Rake angle0.00
Shank diameter in3/4
Toolholder styleE-STFC
Tool materialSolid Carbide
