Sandvik Coromant

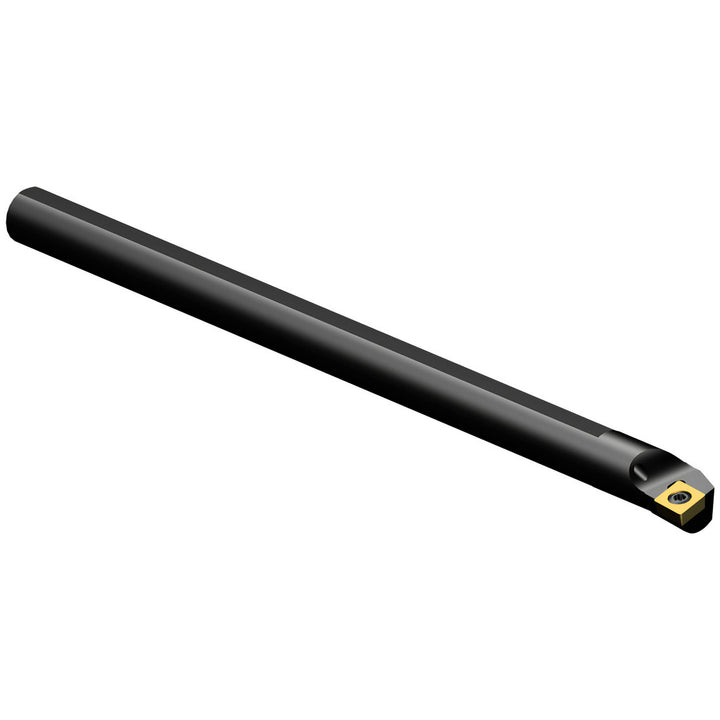

Indexable Boring - Sandvik Coromant 5734223
MFR# 5734223Cat# E06M-SCLCL 2Series CoroTurn 107
$497.11List $528.12
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5734223 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge6.0000
Center to cutting edge in1/4
Coolant throughYes
Hand of holderLeft Hand
Insert compatibilityCCMT 21.51
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness0.0750
Lead angle0
Manufacturers catalog numberE06M-SCLCL 2
Minimum bore diameter0.4803
Minimum bore diameter using diamond insert cartridge0.4803
Minimum bore diameter using triangle insert cartridge0.4803
Multi use toolYes
Neck diameter in3/8
Number of inserts used on toolholder1
Overall length in6
RakeNeutral
Rake angle0.00
Shank diameter in3/8
Toolholder styleE-SCLC
Tool materialSolid Carbide
