Sandvik Coromant

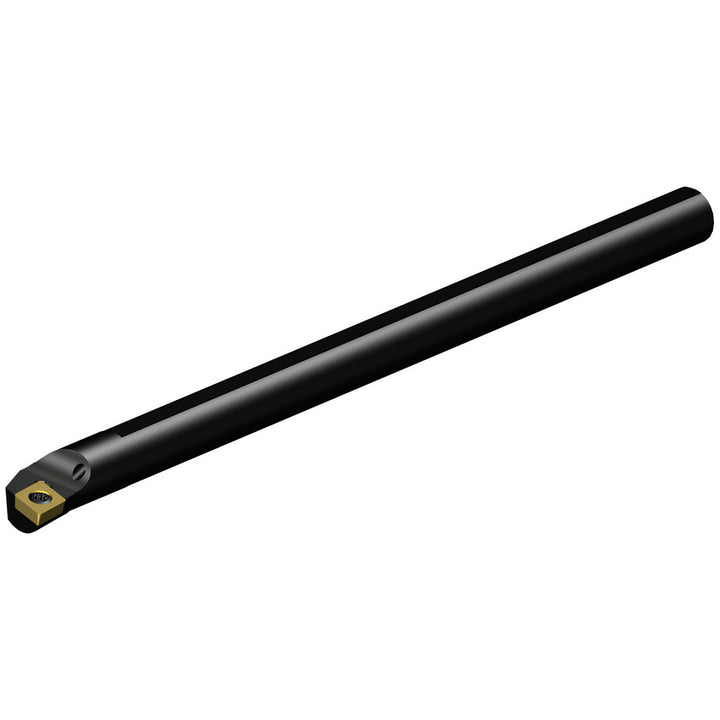

Indexable Boring - Sandvik Coromant 5734225
MFR# 5734225Cat# E06M-SCLCR 2Series CoroTurn 107
$607.34
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5734225 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge6.0000
Center to cutting edge in1/4
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCCMT 21.51
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness0.0750
Lead angle0
Manufacturers catalog numberE06M-SCLCR 2
Minimum bore diameter0.4803
Minimum bore diameter using diamond insert cartridge0.4803
Minimum bore diameter using triangle insert cartridge0.4803
Multi use toolYes
Neck diameter in3/8
Number of inserts used on toolholder1
Overall length in6
RakeNeutral
Rake angle0.00
Shank diameter in3/8
Toolholder styleE-SCLC
Tool materialSolid Carbide
