Sandvik Coromant

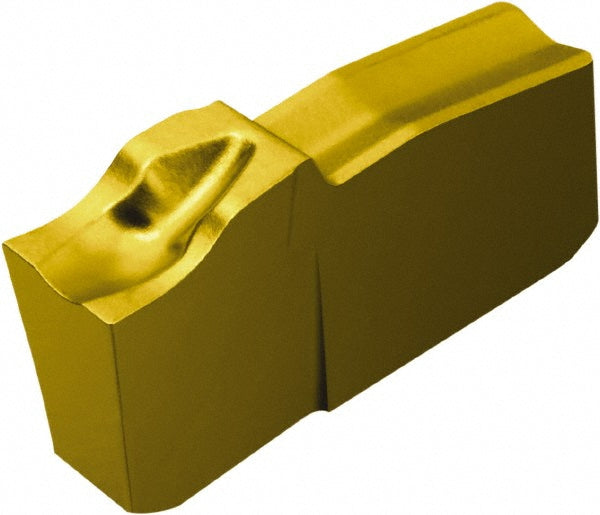

Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5734246
MFR# 5734246Series T-Max Q-Cut
$20.76List $26.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialCarbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5734246 is a carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker5F
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0039
Cutting tool applicationParting
Cutting width0.0984
Insert handLeft Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size25
Insert size code25
Insert styleL151.2
Lead angle5
Lead angle directionLeft Hand
Manufacturers catalog number5734246
Manufacturer grade2135
Relief angle7.00
