Sandvik Coromant

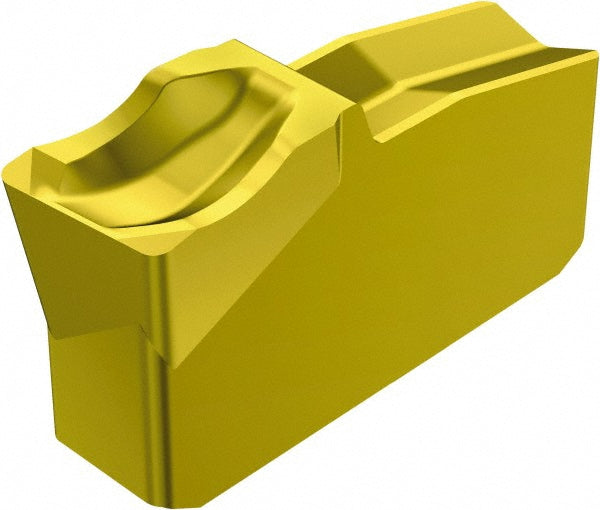

Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5734309
MFR# 5734309Cat# L151.2-300 05-4E 2135Series T-Max Q-Cut
$19.88List $25.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5734309 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker4E
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size30
Insert size code30
Insert styleL151.2
Lead angle0
Lead angle directionLeft Hand
Manufacturers catalog numberL151.2-300 05-4E 2135
Manufacturer grade2135
Overall length0.2193
Overall width0.1181
Relief angle7.00
