Sandvik Coromant

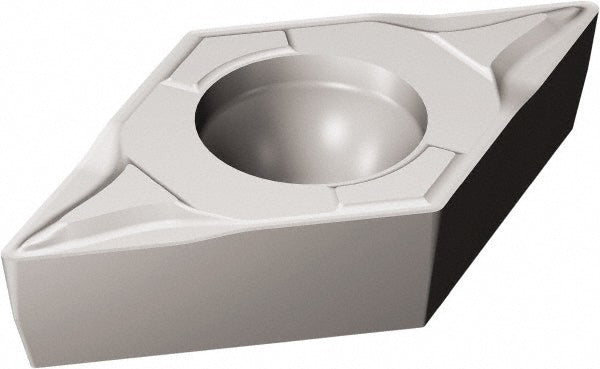

DPMT 07 02 02-PF 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5734900
MFR# 5734900ISO/ANSI# DPMT 07 02 02-PF 5015Series CoroTurn 111
$15.62List $20.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade5015
MaterialCermet
Description
The Sandvik Coromant 5734900 is a DPMT 07 02 02-PF 5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPF
Clearance codeP
Coating processUncoated
Corner radius0.0079
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCermet
Insert shapeDiamond
Insert size code21.5
Insert styleDPMT
Insert thickness in3/32
Iso codeDPMT 07 02 02-PF 5015
Length range0.3000 - 0.4000
Manufacturers catalog number5734900
Manufacturer grade5015
Maximum depth of cut0.2972
Number of cutting edges2
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
