Sandvik Coromant

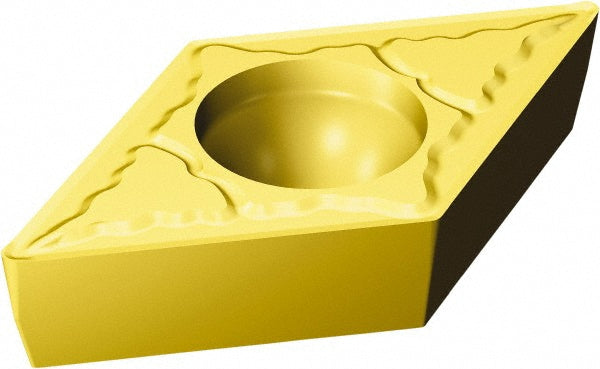

DPMT 07 02 04-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5734910
MFR# 5734910ISO/ANSI# DPMT 07 02 04-MM 2025Series CoroTurn 111
$14.32List $18.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5734910 is a DPMT 07 02 04-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2894
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDPMT
Insert thickness in3/32
Iso codeDPMT 07 02 04-MM 2025
Length range0.0000 - 0.3000
Manufacturer grade2025
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
